Intellinet Network Solutions

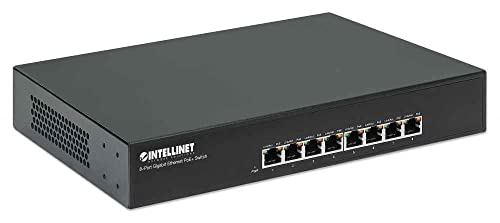

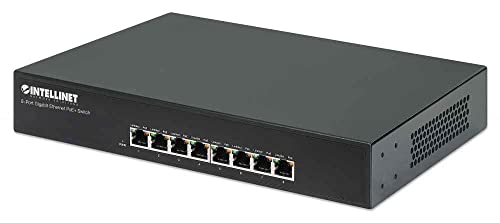

Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch 140W - IEEE 802.3at IEEE 802.3af Power Over Ethernet PoE+ PoE Compliant - Endspan - Desktop or 19" Rackmount 560641

Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch 140W - IEEE 802.3at IEEE 802.3af Power Over Ethernet PoE+ PoE Compliant - Endspan - Desktop or 19" Rackmount 560641

Regular price $109.49 USD
Regular price $0.00 USD Sale price $109.49 USD
Sale Sold out

Brand: Intellinet Network Solutions

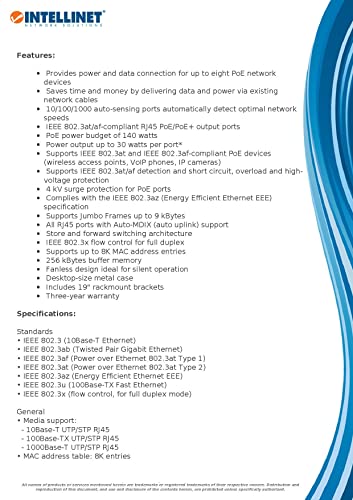

Features:

  • Saves time and money by delivering data and power to up to eitht network devices via Cat-6 or Cat5e network cables - Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps
  • 3 Year Warranty when purchased from the manufacturer or authorized reseller
  • PoE Power budget of 140 watts - Power up to 30 watts per port - 4 kV surge protection for PoE ports - short circuit, overload and high-voltage protection
  • 10 -100 - 1000 auto-sensing ports automatically detect optimal network speeds - Supports Jumbo Frames up to 9 kBytes - All RJ45 ports with Auto-MDIX (auto uplink) support
  • Store and forward switching architecture - IEEE 802.3x flow control for full duplex - Supports up to 8K MAC address entries - 256 kBytes buffer memory
  • BUILT TO LAST: Metal housing - 3 Year Warranty when purchased from the manufacturer or authorized reseller - Includes 19" rackmount brackets - Includes Power Cable

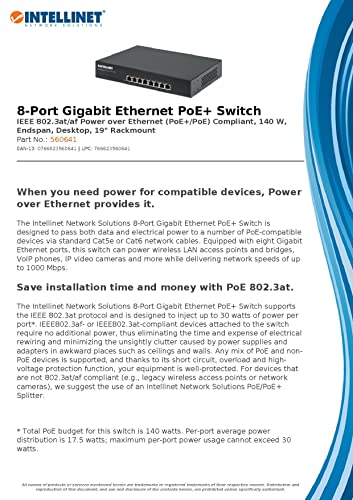

Details: save Installation Time And Money With Poe. The Intellinet 8-port Gigabit Ethernet Poe+ Switch (560641) Is Designed To Pass Both Data And Electrical Power To A Number Of Poe-compatible Devices Via Standard Cat5e Or Cat6 Network Cables. Equipped With Eight Gigabit Ethernet Ports, This Switch Can Power Wireless Lan Access Points And Bridges, Voip Phones, Ip Video Cameras And More While Delivering Network Speeds Of Up To 1000 Mbps. Power Over Ethernet 802.3at The Intellinet 8-port Gigabit Ethernet Poe+ Switch Supports The Ieee 802.3at Protocol And Is Designed To Inject Up To 34 Watts Of Power Per Port. Ieee802.3af- Or Ieee802.3at-compliant Devices Attached To The Switch Require No Additional Power, Thus Eliminating The Time And Expense Of Electrical Rewiring And Minimizing The Unsightly Clutter Caused By Power Supplies And Adapters In Awkward Places Such As Ceilings And Walls. Any Mix Of Poe And Non-poe Devices Is Supported, And Thanks To Its Short Circuit, Overload And High-voltage Protection Function, Your Equipment Is Well-protected. For Devices That Are Not 802.3at/af Compliant (legacy Wireless Access Points Or Network Cameras), We Suggest The Use Of An Intellinet Poe/poe+ Splitter. Total Poe Budget For This Switch Is 130 Watts. Maximum Per-port Power Usage Cannot Exceed 34 Watts On Ports 1 -4 And 15.4 Watts On Ports 5 - 8.

UPC: 766623560641

EAN: 0766623560641

Binding: Electronics

Item Condition: New
